High-Strength Non-Shrink Micro Concrete for Structural Repair
Free Flow. Non-Shrink. High-Strength Structural Repair.
Product Description
What is Hind HSMC?
Hind HSMC is a ready-to-use, free-flow, non-shrink cementitious Micro Concrete designed for high-strength structural concrete repair applications.
Supplied in powder form, Hind HSMC is mixed with water and suitable coarse aggregate to produce a free-flowing, non-shrink and high-strength repair concrete conforming to BS 4551:1980.
Its free-flow characteristics make it particularly suitable for repair areas where conventional concrete placement and vibration are difficult. The material can be used for repairing damaged reinforced concrete members and replacing deteriorated cover concrete.
It is especially suitable for structural repair of columns and beams through encasement, jacketing and similar repair techniques.
Is Damaged Concrete Affecting Your Structure?
- Damaged reinforced concrete members
- Deteriorated concrete cover
- Damaged columns and beams
- Difficult-to-access concrete repair areas
- Areas where conventional vibration is difficult
- Structural members requiring jacketing
- Concrete deterioration caused by weather exposure
- Areas requiring high-strength repair concrete
Repair Concrete. Restore Structural Strength.
Hind HSMC Micro Concrete is designed for structural repair applications requiring a free-flowing, high-strength and non-shrink repair material.
Why Choose Hind HSMC Micro Concrete?
Available from Baral Chemical Company Ltd., a trusted Chemical Company providing building and construction chemical solutions, D-Water Sealer (Exterior) offers a professional solution for exterior surface preparation and paint protection.
For contractors, engineers and property owners looking for the Best Chemical Company in Bangladesh, Baral Chemical Company Ltd. provides specialized products for surface protection and other construction requirements.
✅ Excellent alkali resistance
✅ Excellent efflorescence resistance
✅ Excellent fresh-plaster efflorescence resistance
✅ Helps control moisture penetration
✅ Strong physical barrier against salt migration
✅ Helps protect against fungus and algae
✅ Excellent substrate penetration
✅ Improves topcoat adhesion
✅ Helps increase paint durability
✅ Fast drying and easy application
✅ Suitable for new walls and repainting
Application Areas
Where is Micro Concrete Used?
HIND HSMC is designed for structural concrete repair and rehabilitation where free-flowing repair concrete is required.
01
Damaged RCC Repair
Suitable for repairing damaged reinforced concrete structural members.
02
Column Repair
Suitable for structural repair and strengthening of concrete columns.
03
Beam Repair
Can be used for the repair and rehabilitation of damaged concrete beams.
04
Jacketing Work
Particularly suitable for structural strengthening through column and beam jacketing.
05
Concrete Encasement
Suitable for structural repair work carried out through concrete encasement.
06
Difficult Placement Areas
Recommended where free-flowing concrete is required and conventional vibration is difficult.
Product Benefits
Key Advantages of HIND HSMC
Free Flow Ensures easy placement in difficult repair areas.
High Strength Specifically designed for structural repair applications.
Non-Shrink Helps minimize shrinkage after placement.
Fast Strength Gain Develops strength progressively after placement.
Low Permeability Provides enhanced resistance to weathering and environmental actions.
Chloride-Free Features a chloride-free cementitious formulation to protect reinforcement.
Pre-Packed Helps minimize site batching errors.
Self-Compacting Eliminates the need for conventional vibration.
Application Method
How to Apply Micro Concrete
01
Surface Preparation
Chip off loose and damaged concrete. Exposed reinforcement should be properly cleaned and de-rusted.
02
Reinforcement Treatment
Apply a suitable anti-corrosive coating to the cleaned reinforcement and an appropriate bonding coat to the prepared concrete surface.
03
Mixing
Dry mix the micro concrete powder and coarse aggregate thoroughly, then slowly add the mixture to pre-measured water and mix until a uniform, free-flowing consistency is achieved.
04
Pouring & Placement
Pour or pump the mixed material into the gap between the concrete member and shuttering. Conventional vibration is not required; gentle tamping may be used if necessary.
Recommended Mixing
Micro Concrete Mixing Ratio
Powder : Coarse Aggregate 1 : 0.5 to 0.75
Water : Powder Ratio 0.21
Use 12 mm down, silt-free stone aggregate. The powder and coarse aggregate should first be dry-mixed thoroughly before being added slowly to the pre-measured water.
Pouring & Placement
Free-Flow Structural Repair
The prepared micro concrete can be poured manually or pumped into the space between the existing concrete member and shuttering. According to the product technical data sheet (TDS), it is suitable for placement thicknesses between approximately 40 mm and 125 mm. No conventional vibration is required, except for gentle tamping with a lightweight tool when needed.
Technical Information
Micro Concrete Technical Data
| Compressive Strength – 7 Days | 40 N/mm² |
|---|---|
| Compressive Strength – 28 Days | 50 N/mm² |
| Tensile Strength | 2 N/mm² |
| Flexural Strength | 5 N/mm² |
| Specific Gravity | 2100 Kg/m³ |
| Expansion | 0.1 – 0.5% |
| Placement Thickness | Approx. 40 – 125 mm |
Product Information
Consumption, Packing & Storage
Consumption Approx. 12 Litres
25 kg of HIND HSMC yields approximately 12 litres of fluid grout. Actual yield depends on the quantity of coarse aggregate added.

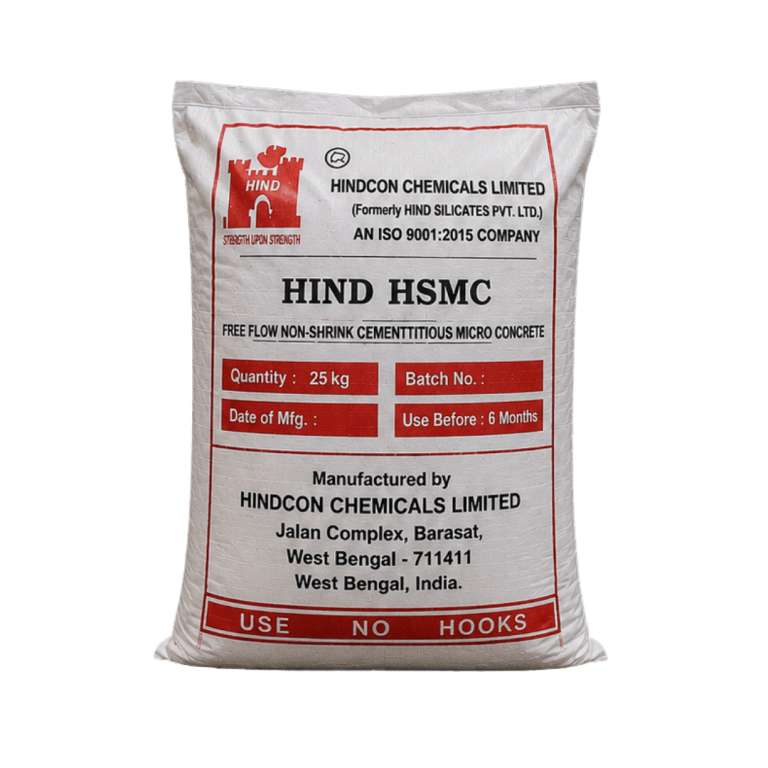

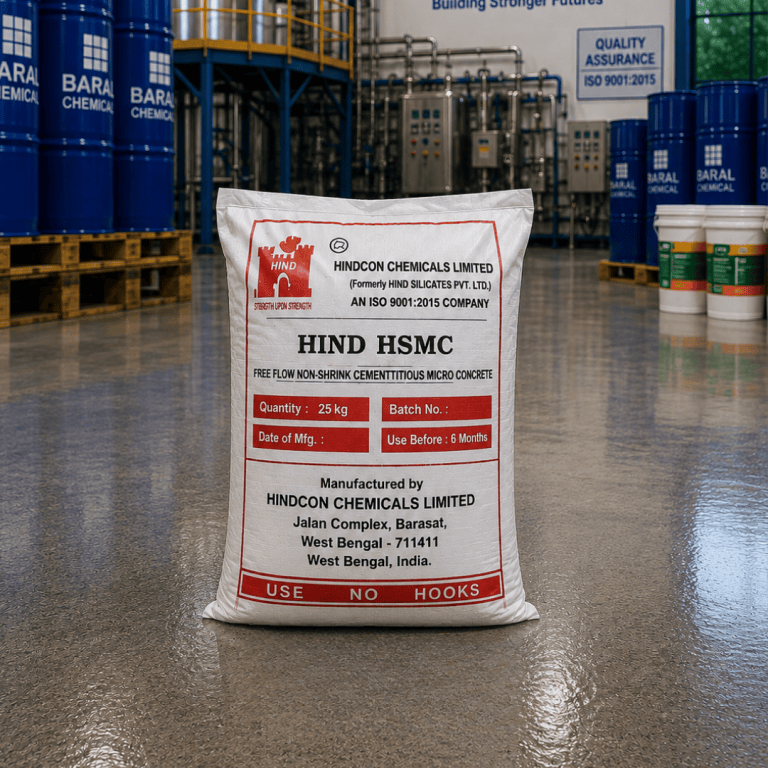

Packing 5 kg & 25 kg
HIND HSMC is supplied in HDPE bags.
Shelf Life 6 Months
Shelf life is 6 months from the date of manufacture in unopened conditions. Store in a cool, dry, and covered space away from direct sunlight.
